A 3D-printable enclosure for the Waveshare ESP32-P4-WiFi6-Touch-LCD-4.3 development board (480x800 LCD). Designed with the Kern air-gapped Bitcoin signer project in mind, but suitable for any use case with this board.

Files

File	Description
KernWaveshare4.3.FCStd	Main FreeCAD source file
KernWaveshare4.3AlanKeyVariant.FCStd	Variant with hex socket head screw mounting
KernWaveshare4.3.3mf	Ready-to-slice 3D model
Button.FCStd	Separate button component

Printing

Material: PLA (dark PLA shown in photos)
Layer height: 0.2 mm
Infill: 20-25 %
Orientation: Print as designed (flat on build plate)

Assembly

Mount the board using M2.5 screws (6 mm or 8 mm length recommended)

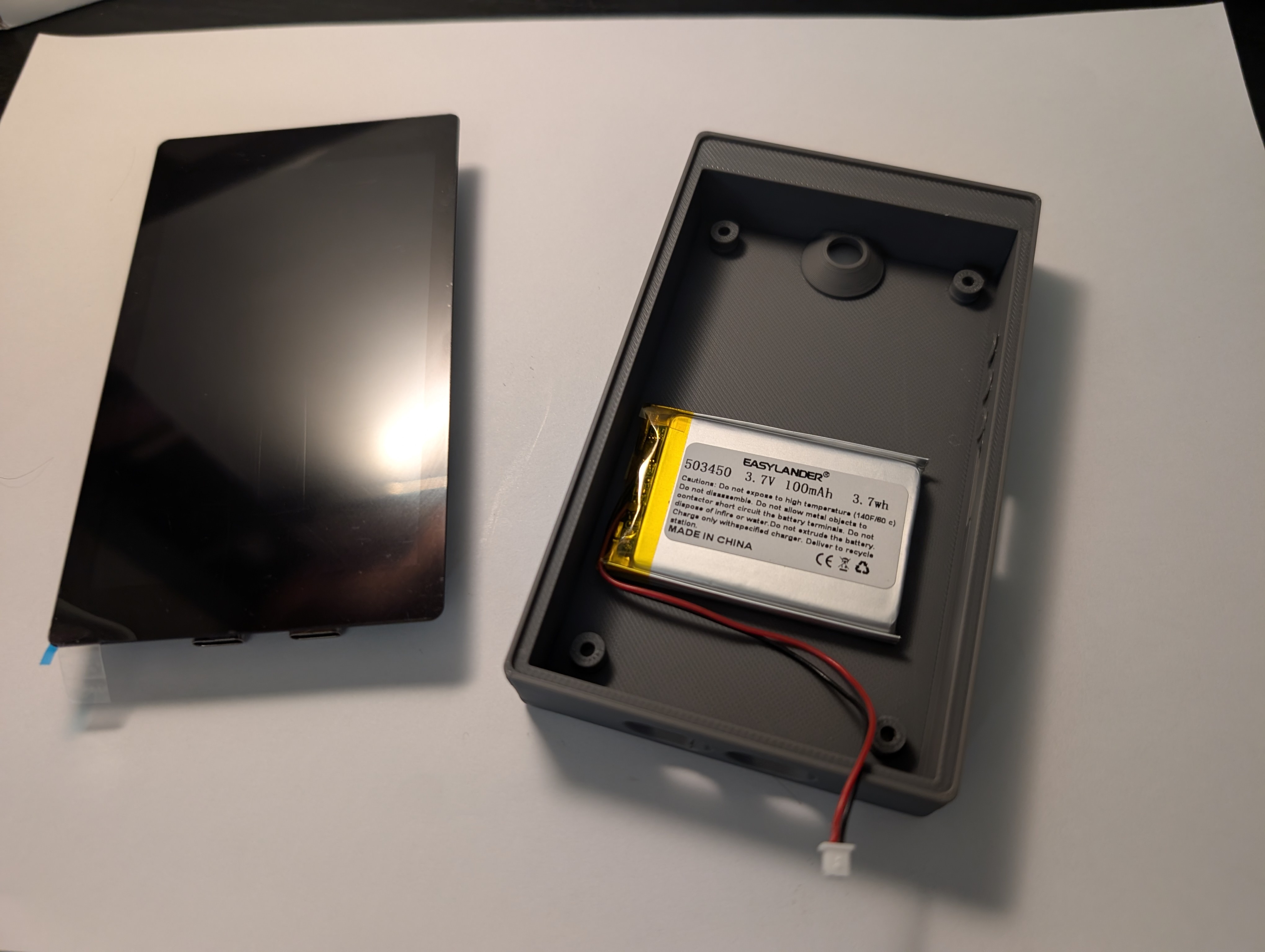

The enclosure has an outer protective rim that frames the 4.3" screen

Kern Project

This enclosure was designed for the Kern project, which uses the ESP32-P4 as an air-gapped Bitcoin signer. Kern supports the 4.3" Waveshare board as the wave_43 target. You can find build and flashing instructions in the Kern README.

License

This work is licensed under CC BY-SA 4.0. If you remix, transform, or build upon this design, you must distribute your contributions under the same license.
